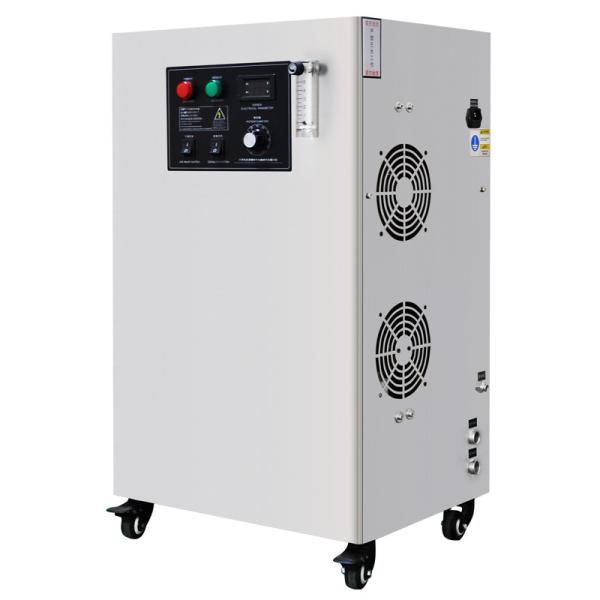

100G 200G 300G Large Water Ozone Generator For Water Treatment

Brand Name : Leader-t/OEM

Model Number : LD

Certification : CE,ISO9001,ISO 14001

Place of Origin : China

MOQ : 1SET

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 1000sets/month

Delivery Time : 7-15 Days

Packaging Details : Wooden /Box

Name : 10-100g ozone generator

Power Source : Battery, Electric, Vehicle Power Supply, electrical

Function : Remove Odor

Application : Hotels, Food & Beverage Factory, Restaurant, Home Use,

Usage : Home . Office

Purification area : 60-6000m2

External case : Stainless steel

Contact Now

Large Ozone Generator With 100G 200G 300G For Water Treatment
Specification
Model NO. LD-5G LD-7G LD-10G LD-15G LD-20G LD-30G LD-40G
Ozone production(g/h) 5 7 10 15 20 30 40
Ozone concentration(mg/L) 10-15mg/L 15-20mg/L
Cooling type Air cooling
Power(W) 80 100 200 250 320 450 500
Power supply AC 220V/50HZ (60hz can be customized)

Length X Width X Height(mm) 320*250*520 380*260*718 420*300*800 450*320*800
Intake air Temp.(℃) ≤20
Air source dew point(℃) ≤45
Working environment

Ambient Temp.≤45℃,RH ≤80%.It is strictly prohibited to use in inflammable and explosive places.
Applicable space(m³) 150-250 210-350 300-500 450-800 600-900 1000-1800


  • Corona discharge technology ozone generator, with high ozone concentration, stable ozone output.
  • Could be connected to self-oxygen
  • Design with inner PSA oxygen generator.
  • Water cooling system, excellent heat release, high ozone concentration.
  • Adjustable ozone output.
  • Thermal-shutdown and over voltage protection.
  • Easy operation; ozone system switch and air pump switch.
  • Widely used in water treatment plant.
Products Description

The powerful air-cooled ozone generator adopts a high temperature resistant HQG non-glass structure discharge unit. The structure is extremely stable, has a long service life, has high discharge efficiency, and is not easily damaged by returning water;

Composition:
generator unit, stainless steel casing, ammeter, Taiwan-made 150 fan, gas flow meter, ozone adjustment knob, etc.

Features:
No ozone alarm, no automatic shutdown, return to normal after ozone, this function indicates whether the discharge unit is working normally.
Backwater alarm. Stop using oxygen or dry air to dry and turn on the machine. Stop the alarm for 3 seconds after starting up.
Over-temperature alarm and shutdown protection, when the temperature is below 50 degrees, it will automatically resume work and stop the alarm.

Pictures
100G 200G 300G Large Water Ozone Generator For Water Treatment 100G 200G 300G Large Water Ozone Generator For Water Treatment 100G 200G 300G Large Water Ozone Generator For Water Treatment
